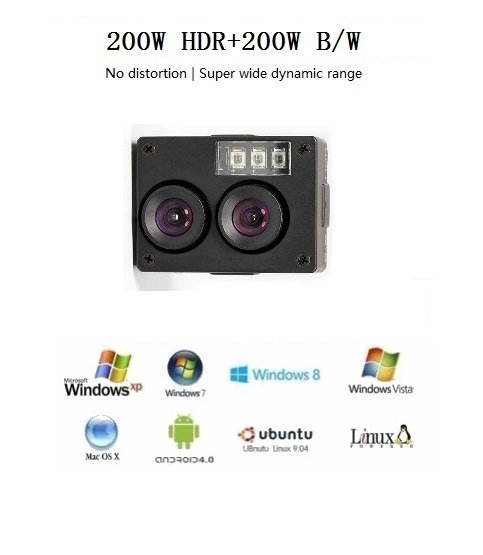

DV-DH4044S305AD
1. Product feature(产品特性)
·1/2.7” 工业级双目200万高清宽动态图像传感器
·黑白彩色最大30帧无卡顿
·0.1Lux 超低照效果
·黑白1.5W,彩色1W超低功耗
·-30℃~+70℃宽温度范围稳定工作
·符合专业USB-IF WHQL RoHS CE（4KV/8KV）认证
·设备名称 厂家 等描述信息多样化定制
·标准UVC协议，兼容Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC )多种系统
·长达3年的质保期&3万小时无故障寿命
·锌镁合金外壳高强度碰撞防护
·平台最低配置：CPU 1.7GHZ 512MB内存 40GB硬盘 XP SP2系统
2. SPECIFICATIONS(规格书)
|
Signal |
Parameter |
REMARKS |
||||
|
Image Sensor（图像感光片） |
1/2.7” CMOS |
1/2.7” CMOS |
||||
|
Image sensor Data output（数据输出类型） |
Raw Data |
|||||
|
Video output（输出格式） |
MJPG/YUY2 |
|||||
|
Maximum Frame Rates（B/W） （分辨率和帧率）
|
1920x1080 at 30fps 1280x1024 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920x1080 at 5fps 1280x1024 at 5fps 1280x720 at 10fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
||||
|
Maximum Frame Rates（HDR） （分辨率和帧率）
|
1920x1080 at 30fps 1280x960 at 30fps 1280x720 at 30fps 1024x768 at 30fps 800x600 at 30fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
1920x1080 at 5fps 1280x960 at 5fps 1280x720 at 10fps 1024x768 at 10fps 800x600 at 20fps 640x480 at 30 fps 352x288 at 30fps 320x240 at 30fps 160x120 at 30fps |
||||
|
SNR max（信噪比） |
41dB |
41dB |
||||
|
Dynamic range（动态范围） |
96dB |
105dB |
||||
|
Min. Illumination（最低照度） |
0.01LUX at F1.2 |
0.1LUX at F1.2 |
NO LED |
|||
|
Digital interface（连接接口) |
5-pin 1.25mm USB2.0 |
|||||
|
Transfer rates（接口速度） |
480Mb/S |
|||||
|
Power requirements（电源） |
5V±5% |
|||||
|
Power Consumption （功率） |
MXA 1.65W |
MXA 1.55W |
||||
|
IR-LED Wavelength(红外灯光谱) |
850nm |
|||||
|
Dimensions(PCBA)（PCBA尺寸）mm |
28x38 ±5% |
|||||
|
Operating temperature（℃）（稳定工作温度） |
-30~70 ℃ |
|||||
|
Storage temperature(℃)（储存温度&湿度） |
-40~80 ℃/0~90RH |
|||||
|
Compliance（产品标准） |
USB-IF WHQL CE RoHS |
|||||
|
Lens Mount（可搭配镜头类型） |
M12(f=3.5MM) |
|||||
|
Lens view （默认镜头） |
M12 |
|||||
|
Warranty(质保期) |
3 years |
|||||
|
OS（支持系统） |
Windows XP/7/8.1/10/vista/seven/Mac linux2.6.2(include UVC ) |
|||||
|
USB CONN（USB接口定义） |
1 |
5V |
USB POWER |
500mA max |
||
|
2 |
DM |
- |
D- |
|||
|
3 |
DP |
- |
D+ |
|||
|
4 |
GND |
- |
DGND |
|||
|
5 |
COVER |
- |
shield |
|||
3.Sensor Dimension (感光片尺寸)&Filter wavelength（滤光片光谱）
Sensor Dimension
IR-Filter wavelength（红外滤光片光谱）
